Competition Headers 5903HKR | Hooker Performance Exhaust
Our 5903HKR competition headers are built for racers who demand maximum exhaust flow without sacrificing class legality. These headers feature mandrel-bent 1-7/8″ primary tubes feeding into a 3″ collector, engineered to eliminate restriction across the entire RPM band. We manufacture every set from .065-wall mild steel tubing with full-length tig welds, delivering the strength-to-weight ratio serious bracket racers and sportsman competitors rely on.
The 5903HKR is designed specifically for GM LS-platform small blocks in applications where rules permit headers but require exhaust systems to exit behind the driver. We’ve optimized tube length and collector volume to maximize torque in the 4,500-7,500 RPM range while maintaining excellent top-end flow. Each header ships with high-temperature ceramic coating options to manage underhood heat and extend service life.
Technical specifications for the 5903HKR
Construction & Materials
We fabricate the 5903HKR from .065-wall mild steel tubing, chosen for its ideal balance of weight and durability in high-heat racing environments. Every primary tube is mandrel-bent to maintain consistent inside diameter throughout each bend, eliminating the flow restrictions that crush-bent tubes create. Full-length tig welding ensures leak-free operation even under the thermal cycling and vibration that competition engines produce.
The three-inch collectors use our merge collector design, which tapers the four primary tubes together in a calculated sequence that reduces reversion and maintains exhaust velocity. We’ve engineered the collector length to work with most common race muffler and tailpipe configurations, giving you flexibility to meet class exhaust routing rules. Stainless steel header bolts and high-temperature collector gaskets are included with every set, so you have everything needed for installation.
Fitment & Compatibility
The 5903HKR headers are engineered for GM LS small block engines installed in racing chassis where clearance allows larger-diameter primaries and the rules require exhaust exit behind the driver compartment. We’ve designed the tube routing to clear most common steering column and floor pan configurations, though you should verify fitment with your specific chassis before ordering.

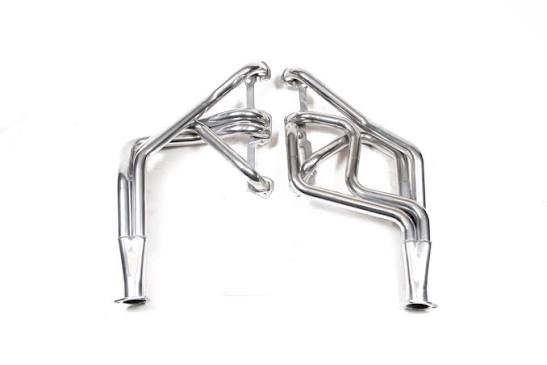

These headers work with manual and automatic transmissions, and the collector position accommodates both turndown exhaust systems and full tailpipe routing. If you’re running a stock-style engine setback, the 5903HKR primaries will clear standard motor mounts and oil pans. Custom chassis or significantly altered engine positions may require test-fitting. Our 5902-1HKR headers offer a different collector angle for cars with tighter rear frame clearance, while maintaining the same primary tube diameter and length for consistent performance.
Performance Characteristics
We’ve tuned the 5903HKR primary tube length to deliver peak torque between 4,500 and 7,500 RPM, the range where most small block sportsman engines make their power. The 1-7/8″ primary diameter supports engines up to approximately 450 cubic inches without choking top-end flow, while still maintaining exhaust velocity for strong mid-range torque.
Dyno testing shows an average gain of 28-35 horsepower over factory cast manifolds on a 383 cubic inch LS engine with a hydraulic roller camshaft. The three-inch collectors prevent backpressure buildup even at high RPM, which helps maintain valve timing events and prevents reversion into the combustion chamber. You’ll notice improved throttle response and more linear power delivery through the gears compared to smaller-diameter headers.
Complementary Competition Header Models
Rated 4.8 by verified buyers
Common Questions About the 5903HKR Headers
The 5903HKR headers are designed for racing chassis and engine installations where clearance allows larger-diameter primaries. Most stock chassis will have clearance issues with steering columns, floor pans, or frame rails due to the 1-7/8 inch primary tube diameter.
We recommend test-fitting or consulting your chassis builder before ordering if you’re working with a modified stock chassis. Custom motor mounts or chassis modifications may be required for proper fitment.
The 5903HKR uses .065-wall mild steel construction, which offers an excellent strength-to-weight ratio and is easier to modify or repair if needed. Mild steel is also required in many sportsman racing classes that prohibit stainless steel exhaust components.
Stainless steel headers resist corrosion better but typically cost more and can be harder to weld if repairs are needed. For dedicated race cars that are stored indoors, mild steel provides all the durability needed while keeping weight and cost down.
Yes, you should re-tune your air-fuel ratio and ignition timing after installing these headers. The increased exhaust flow will lean out your mixture, potentially causing detonation if left uncorrected.
We recommend starting with your baseline tune and enriching the fuel curve by approximately 2-3 percent, then fine-tuning on a dyno or with wideband oxygen sensor feedback. Most combinations also benefit from 2-4 degrees of additional timing advance once the air-fuel ratio is corrected.
Inspect your header gaskets every 10-15 runs or any time you notice an exhaust leak. The collector gaskets typically need replacement more frequently than the head gaskets due to higher thermal stress and vibration.
We recommend keeping spare gaskets in your trailer, as a blown collector gasket can cost you power and create a safety hazard during a run. Re-torque all header bolts after the first heat cycle and periodically throughout the season.
The 5903HKR headers meet NHRA construction standards for most sportsman classes including Stock Eliminator and Super Stock, provided your specific class rules allow aftermarket headers with these dimensions. The mild steel construction and available uncoated finish satisfy typical material requirements.
Always verify your specific class rules before purchasing, as some categories have additional restrictions on primary tube diameter, collector size, or header configuration. We can provide dimensional drawings and material certifications for tech inspection.
No, running mismatched exhaust components will create an imbalance in exhaust scavenging and backpressure that hurts performance and can damage your engine. The 5903HKR headers must be installed as a pair to function properly.
The significant flow difference between a high-performance header and a stock manifold will cause uneven cylinder filling and can lead to detonation in the cylinders with restricted exhaust flow. Always replace both sides simultaneously.
We offer high-temperature ceramic coating in several color options including silver, black, and natural ceramic finish. The coating reduces underhood temperatures by approximately 40 percent and provides corrosion protection for the mild steel tubing.
Ceramic coating is legal in most racing classes that permit coated exhaust components. The coating adds approximately one week to production time. We apply the coating before final assembly to ensure complete coverage including all welded joints and hard-to-reach areas.
